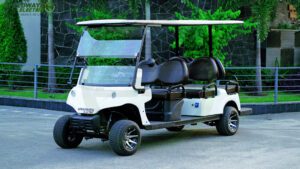

Charlie 6

Premium Six Seater Golf Cart

Charle 6

charlie6-bg1

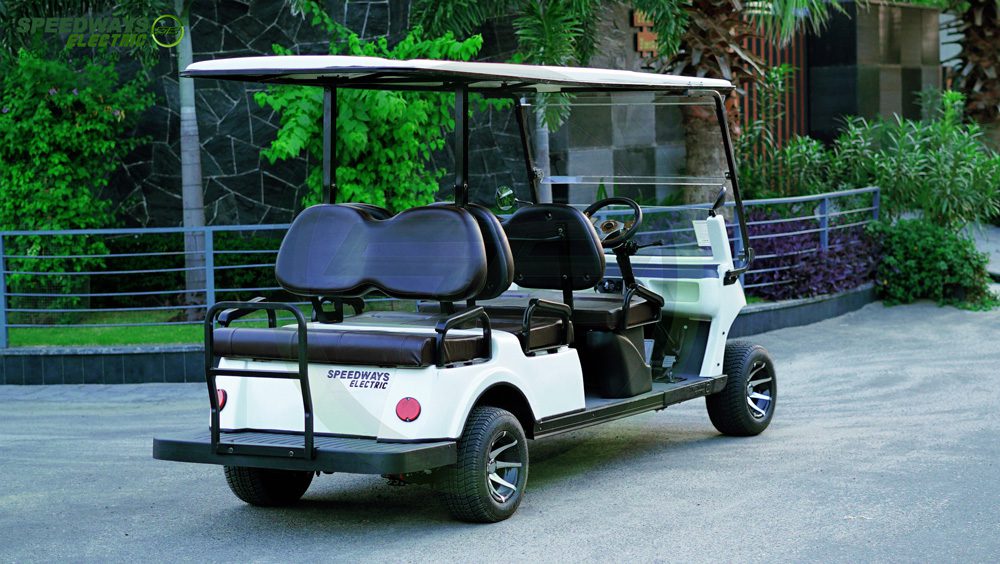

charlie6-bg2

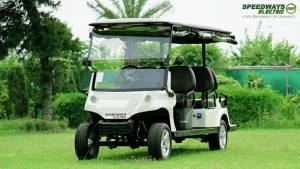

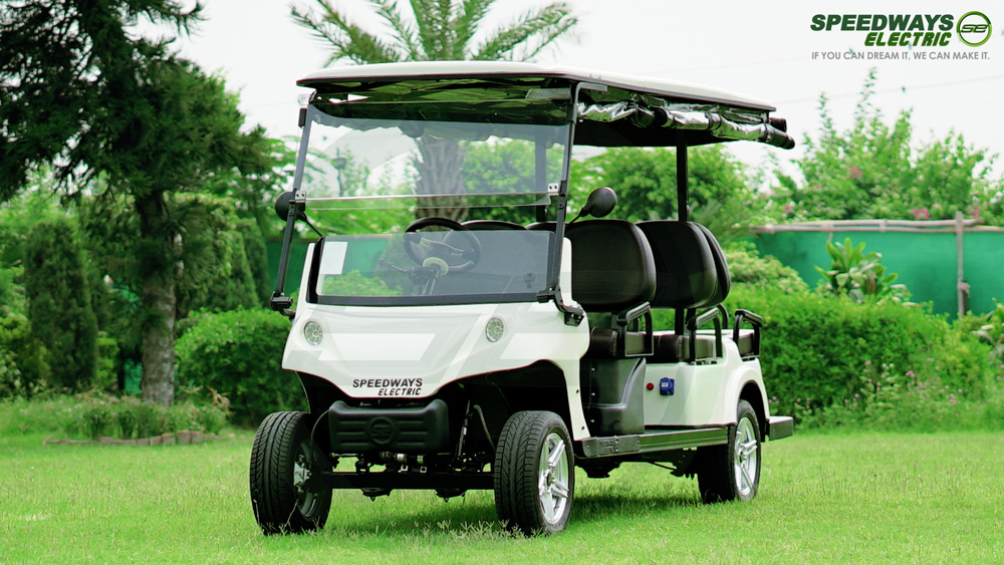

charlie6-bg4
charlie6-bg5

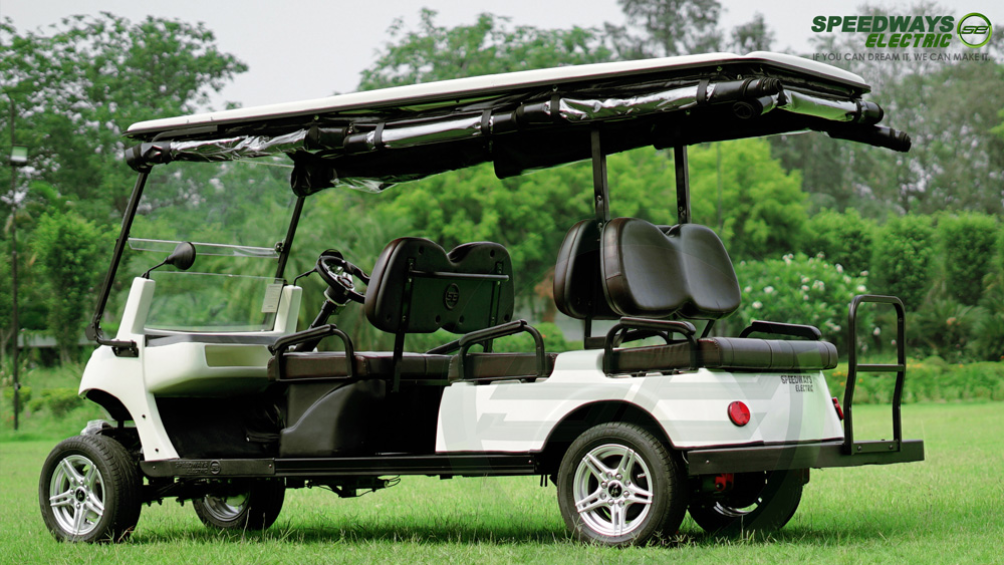

charlie6-bg3

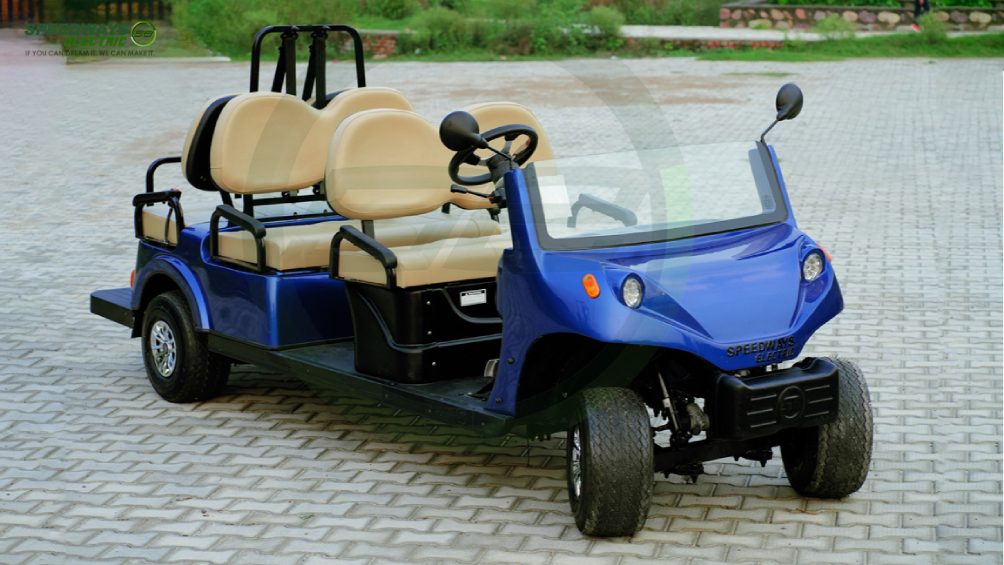

charlie6-bg8

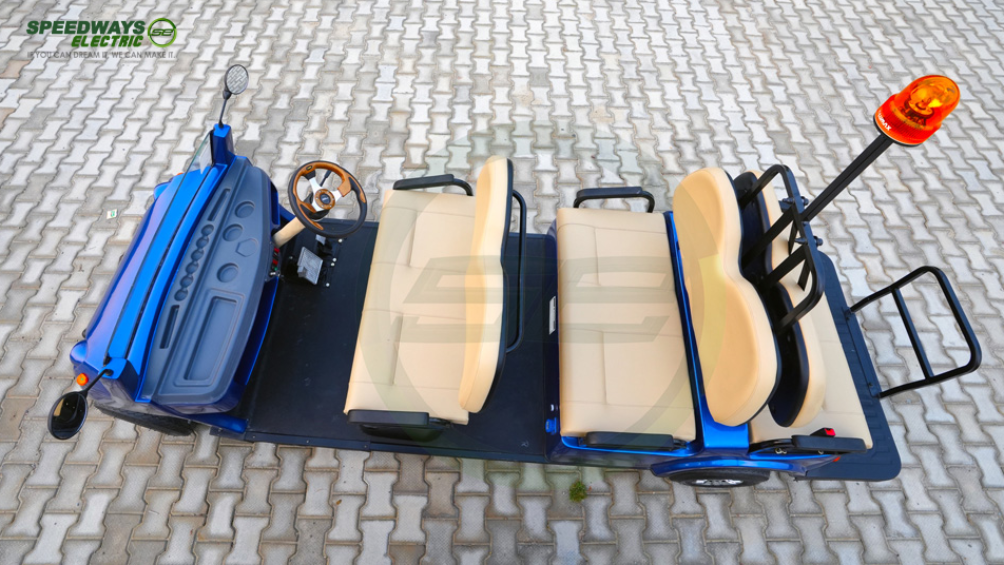

charlie6-bg10

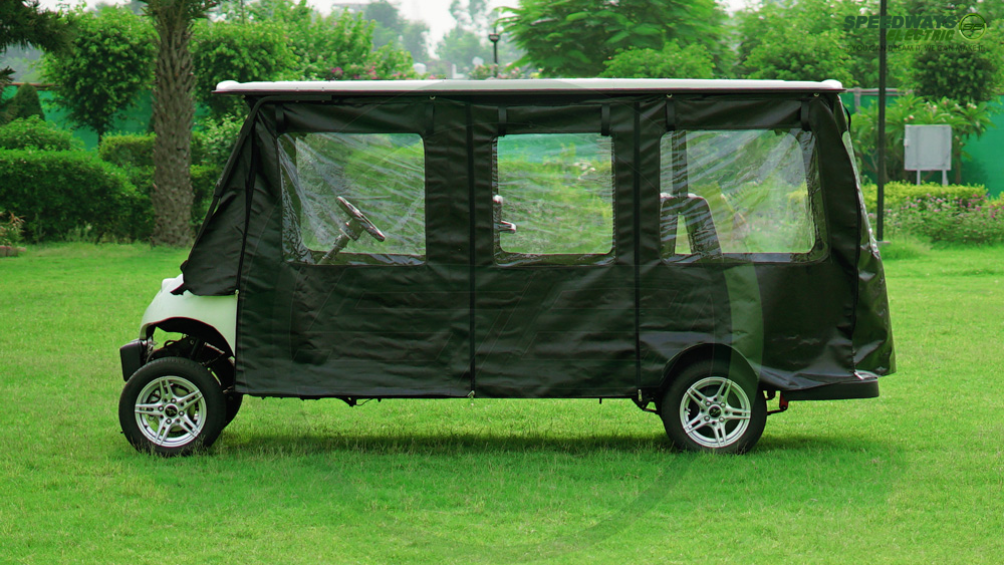

charlie6-bg7
charlie6-bg1 charlie6-bg2 charlie6-bg4 charlie6-bg5 charlie6-bg3 charlie6-bg8 charlie6-bg10 charlie6-bg7

Fill The Form

Fill the Below Form and download Our Catalogue





Fill The Form

Fill the Below Form and download Our Catalogue

Sl No Parameters Description Technical Specification
1 Model CHARLIE 6
2 Dimensional features Seating Capacity 6
3 Kerb Weight 630  Kg
4 Laden Weight 1159 Kg
5 Overall Width 1200 mm
6 Overall Height 1850mm
7 Overall Length 3680mm
8 Turning Radius 4.0 m
9 Ground Clearance 270mm
10 WheelBase 2580mm
14 System Specification Drive Motor 5 K.W
19 Wheel Drive Rear wheel drive
20 Electrical System 48V AC system
21 Batteries 6*8 V-175ah / 8* 6 V- 225 Ah (lead acid ) or 48 V -130 Ah Li-ion
22 Controller 48V ,350 A
23 Charger 48V ,20-25 Amp
24 Battery Specification
25 lead Acid Length 264 mm
26 width 181 mm
27 Height 276 mm
28 Capacity C20 175AH / C20 :225 AH
29 Dry Weight 24.5 kg / 23.5 KG
30 Weight Filled 31.5 kg / 30.5 KG
31 Warranty 1 year
32 Lithium Ion Capacity 130 ah
33 Warranty 3 years
34 Weight 50 KG
35 Steering Suspension Steering Rack and Pinion
36 Front Suspension Leaf spring with  hydraulic shocks
37 Rear Suspension Leaf spring with shock dampers
38 Brakes OIL Brake / Wire Brake
44 Body/Chassis Frame/Chassis Power coated, tubilar steel chassis
45 Body Fibre
46 Tyres 205/50-R10
47 Roof ABS
64 Performance Maximun Speed 25 Km/h
65 Maximum Travel Distance 60-80 kms
66 Grade Ability Max 10-15 degrees
67 Dashboard Switch Panel (Key Switch) Yes
68 Battery Discharge Indicator (BDI) Yes
69 Charging Indicator Yes
70 12 V Charging Socket Yes
74 Lights Head Light Yes
75 Tail Light Yes
76 Indicator Yes
85 Optional Parts rain covers, seat belt ,Speedometer , body cover , ice basket
86 Free Service 04 services
87 Warranty 1 year
