Charlie 8

Premium Eight Seater Golf Cart

SEATING

8

MOTOR

5KW

RANGE

60-80 KMS

BATTERY

225 AH

SEATING

8

MOTOR

5KW

RANGE

60-80 KMS

BATTERY

225 AH

Grand Luxury For Larger Groups

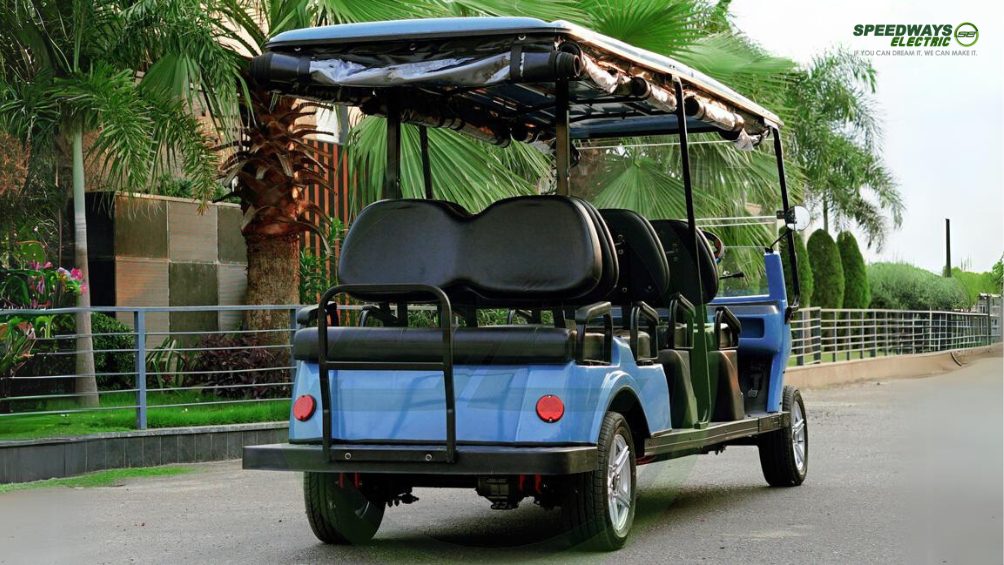

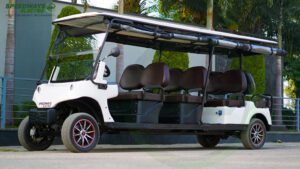

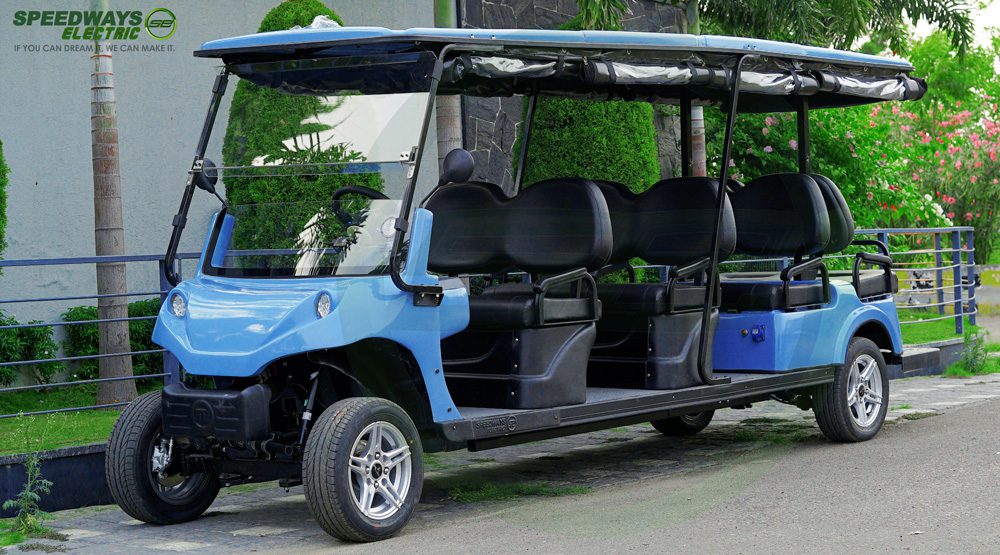

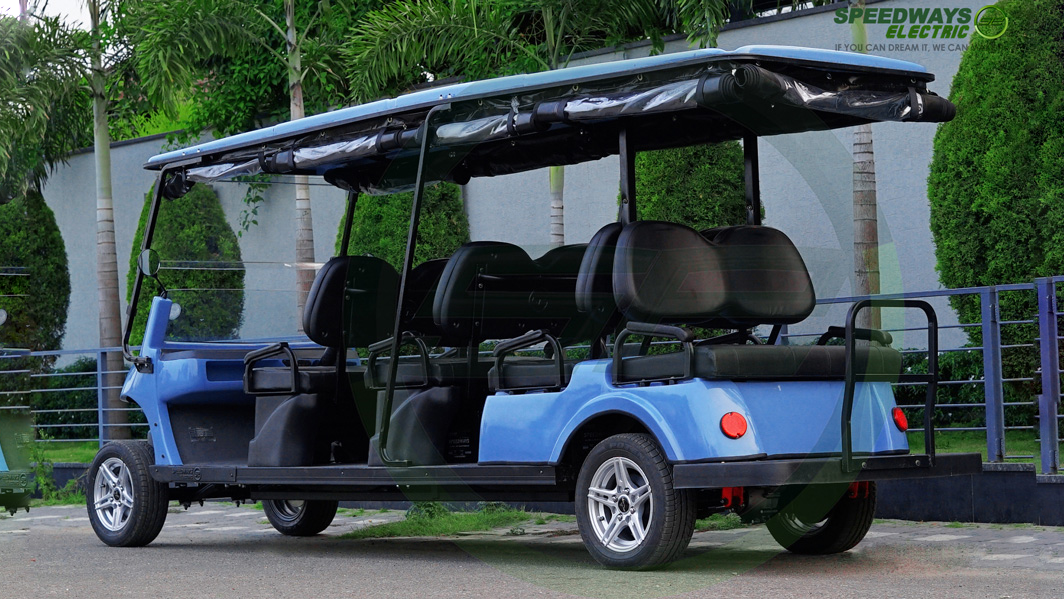

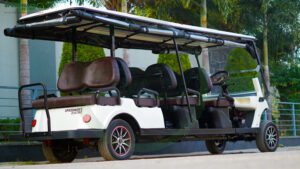

Meet Charlie 8, the epitome of spacious and stylish urban mobility. Boasting six forward-facing seats and two rear-facing seats, Charlie 8 is the go-to choice for bustling locales like large resorts, sightseeing hotspots, and vibrant exhibitions.

Grand Luxury For Larger Groups

Meet Charlie 8, the epitome of spacious and stylish urban mobility. Boasting six forward-facing seats and two rear-facing seats, Charlie 8 is the go-to choice for bustling locales like large resorts, sightseeing hotspots, and vibrant exhibitions.

Charle 8

Front and rear seats at equal level for comfort.

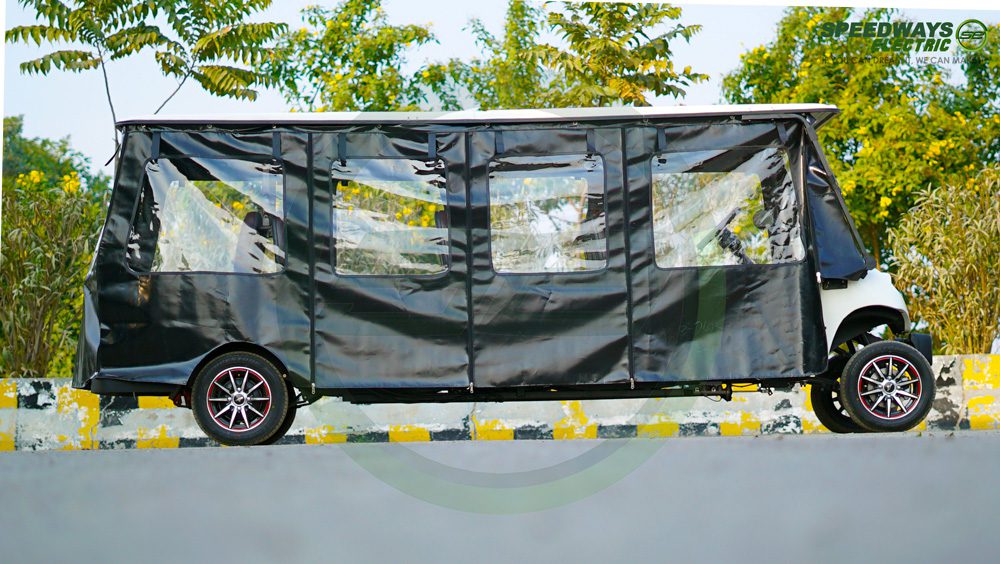

Foldable rain cover: Protection against inclement weather.

Where Space Meets Style In Urban Mobility!

In the heart of vibrant destinations and busy urban areas, Charlie 8 stands tall as the perfect solution for those who demand both space and flair. Its configuration, with ample forward and rear-facing seating, is designed to ensure that every passenger enjoys a comfortable and engaging ride.

With its sleek design and a seating arrangement that encourages interaction and engagement, Charlie 8 is the preferred choice for enhancing the experience of busy areas. It's the vehicle that combines the practicality of high-capacity seating with the style that makes heads turn.

Elevate the mobility experience in large resorts, sightseeing tours, and exhibitions with Charlie 8.

Golf bag holder (optional)

Charlie's unique dashboard

Foldable rain cover

Foldable windshield (OPTIONAL)

Front and rear seats at equal level for comfort.

Foldable rain cover: Protection against inclement weather.

Where Space Meets Style In Urban Mobility!

In the heart of vibrant destinations and busy urban areas, Charlie 8 stands tall as the perfect solution for those who demand both space and flair. Its configuration, with ample forward and rear-facing seating, is designed to ensure that every passenger enjoys a comfortable and engaging ride.

With its sleek design and a seating arrangement that encourages interaction and engagement, Charlie 8 is the preferred choice for enhancing the experience of busy areas. It's the vehicle that combines the practicality of high-capacity seating with the style that makes heads turn.

Elevate the mobility experience in large resorts, sightseeing tours, and exhibitions with Charlie 8.

Golf bag holder (optional)

Charlie's unique dashboard

Foldable rain cover

Foldable windshield (optional)

Features

Specially designed Suspension for extra comfort
Programme as per use
Convertible Roof
Corrosion protected Chassis
Ease of manuverability
Four Wheel Braking System
Bigger Drum Brakes for Safety

TECHNICAL SPECIFICATION HIGHLIGHTS
Seating Capacity	8 pax (6 Forward Facing + 2 Rear Facing)
Battery Type (Lead Acid) OR	225ah
Battery Type (Lithium)	120ah
Mileage	60-80kms
Motor	AC 5KW
Charging Time	6-8hours
Steering position	RHD and LHD both available

Features

Specially designed Suspension for extra comfort
Programme as per use
Convertible Roof
Corrosion protected Chassis
Ease of manuverability
Four Wheel Braking System
Bigger Drum Brakes for Safety

TECHNICAL SPECIFICATION HIGHLIGHTS
Seating Capacity	8 pax (6 Forward Facing + 2 Rear Facing)
Battery Type (Lead Acid) OR	225ah
Battery Type (Lithium)	120ah
Mileage	60-80kms
Motor	AC 5KW
Charging Time	6-8hours
Steering position	RHD and LHD both available

Optional Accessories

Alloy Wheels

Body Cover

Foldable Glass

Rain Cover

Speakers

Hand Hold

Seat Belt

Mobile Charging Socket

Golf Bag Attachment

Optional Accessories

Alloy Wheels

Body Cover

Foldable Glass

Rain Cover

Speakers

Hand Hold

Seat Belt

Mobile Charging Socket

Golf Bag Attachment

Fill The Form

Fill the Below Form and download Our Catalogue

Sl No	Parameters	Description	Technical Specification
1	Model		CHARLIE 8
2	Dimensional features	Seating Capacity	8
3		Kerb Weight	650 Kg
4		Laden Weight	1300Kg
5		Overall Width	1200 mm
6		Overall Height	1850mm
7		Overall Length	3680mm
8		Turning Radius	4.0 m
9		Ground Clearance	270mm
10		WheelBase	2580mm
14	System Specification	Drive Motor	5 K.W
19		Wheel Drive	Rear wheel drive
20		Electrical System	48V AC system
21		Batteries	8* 6 V- 225 Ah (lead acid ) or 48 V -130 Ah Li-ion
22		Controller	48V ,350 A
23		Charger	48V ,20-25 Amp
24	Battery Specification
25	lead Acid	Length	264 mm
26		width	181 mm
27		Height	276 mm
28		Capacity	C20 175AH / C20 :225 AH
29		Dry Weight	24.5 kg / 23.5 KG
30		Weight Filled	31.5 kg / 30.5 KG
31		Warranty	1 year
32	Lithium Ion	Capacity	130 ah
33		Warranty	3 years
34		Weight	50 KG
35	Steering Suspension	Steering	Rack and Pinion
36		Front Suspension	Leaf spring with hydraulic shocks
37		Rear Suspension	Leaf spring with shock dampers
38		Brakes	OIL Brake / Wire Brake
44	Body/Chassis	Frame/Chassis	Power coated, tubilar steel chassis
45		Body	Fibre
46		Tyres	205/50-R10
47		Roof	ABS
64	Performance	Maximun Speed	25 Km/h
65		Maximum Travel Distance	60-80 kms
66		Grade Ability	Max 10-15 degrees
67	Dashboard	Switch Panel (Key Switch)	Yes
68		Battery Discharge Indicator (BDI)	Yes
69		Charging Indicator	Yes
70		12 V Charging Socket	Yes
74	Lights	Head Light	Yes
75		Tail Light	Yes
76		Indicator	Yes
85	Optional Parts		rain covers, seat belt ,Speedometer , body cover , ice basket
86	Free Service		04 services
87	Warranty		1 year
