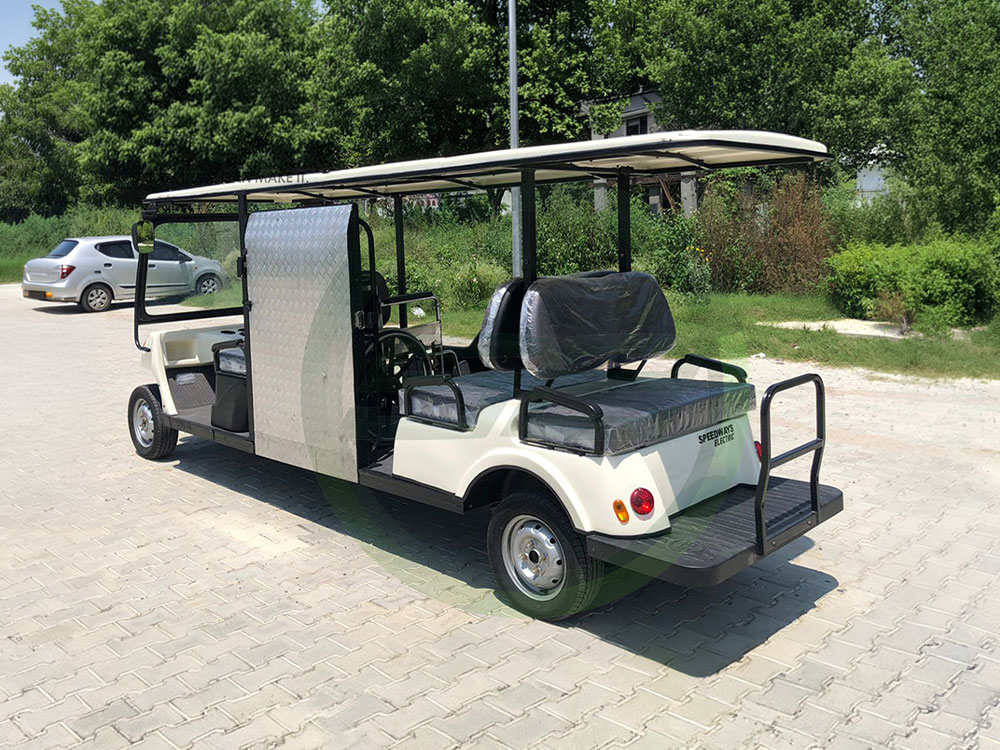

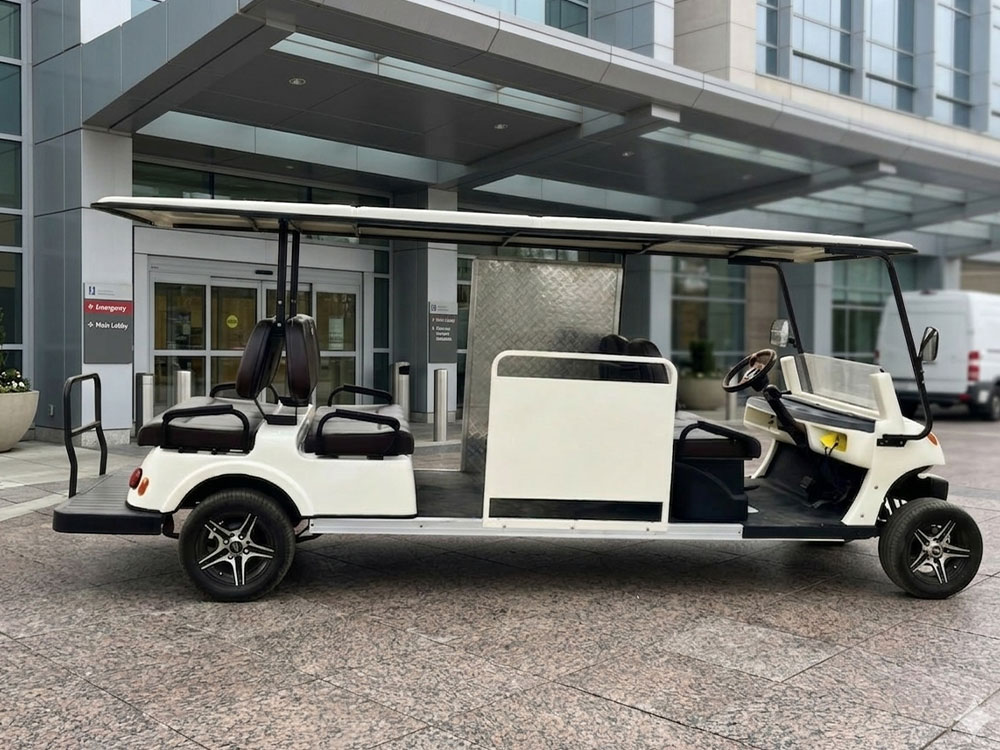

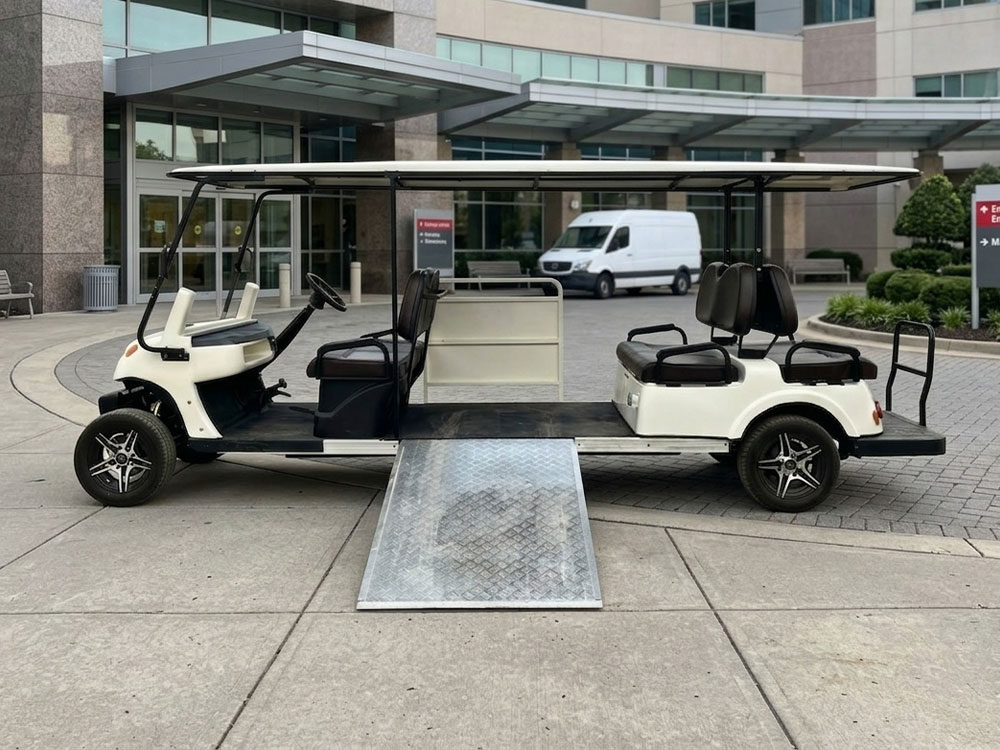

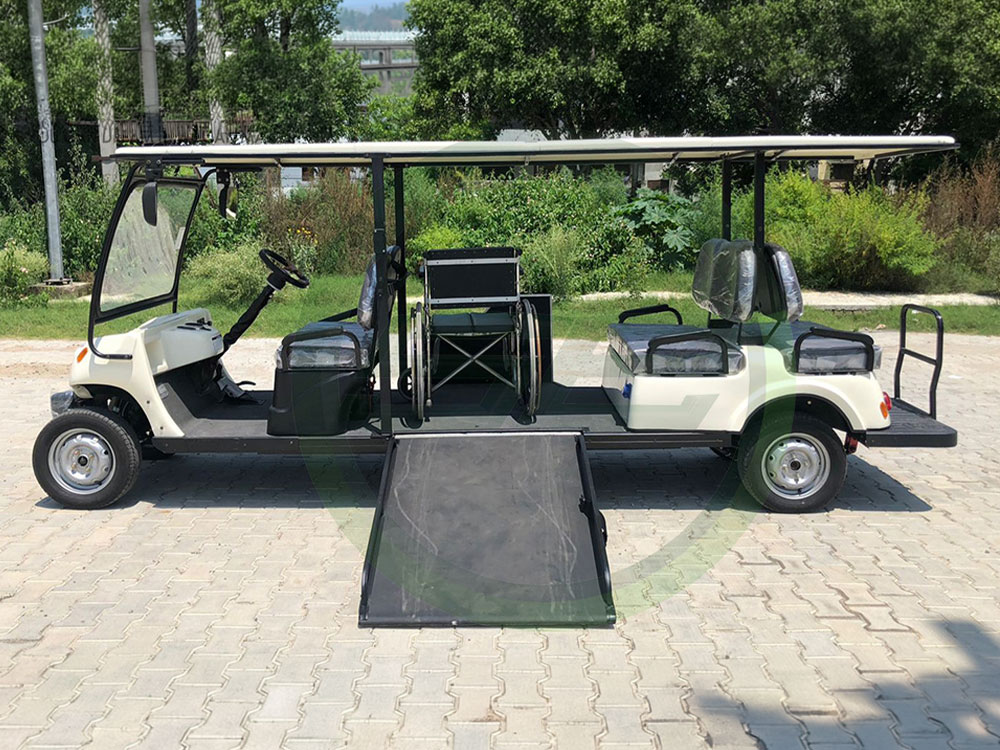

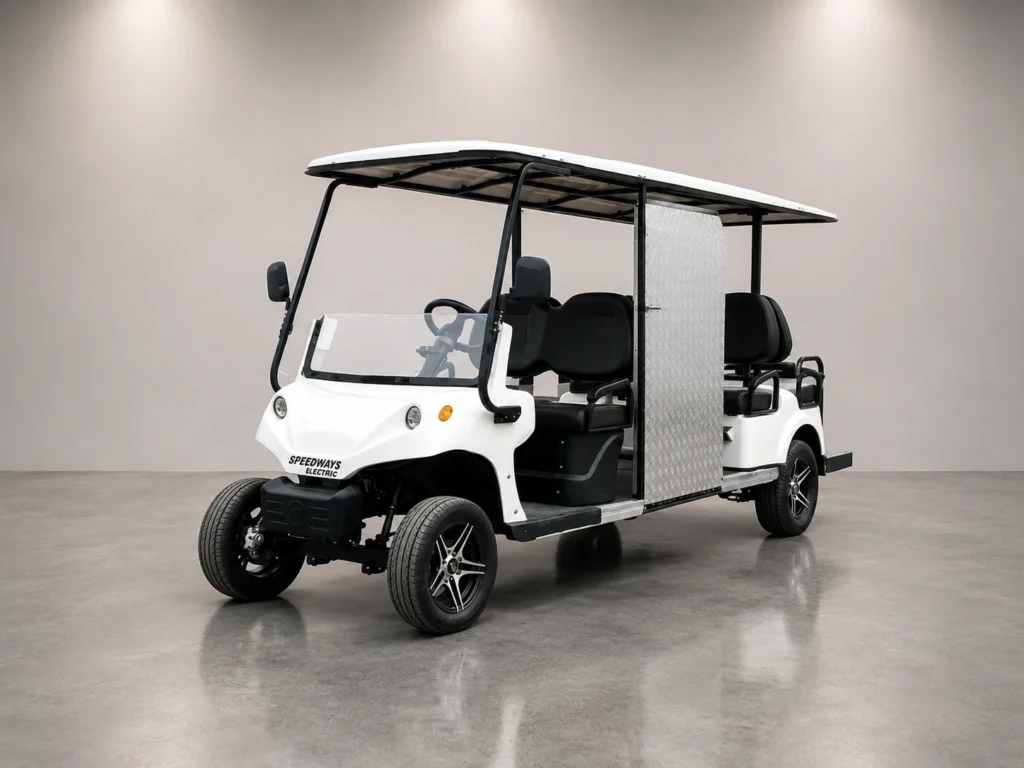

The Charlie Wheel Chair is engineered to enable barrier-free mobility across environments where accessibility is essential. Its integrated ramp system allows wheelchair users to board easily without assistance, ensuring safe and efficient transport.
The vehicle combines passenger seating with a dedicated wheelchair position, allowing inclusive travel within a single platform. Powered by an electric drivetrain, it ensures quiet operation and smooth movement, making it suitable for sensitive environments such as hospitals and campuses.
Designed for practicality and comfort, the Charlie Wheel Chair enhances mobility accessibility across large properties.
| Parameters | Charlie Wheelchair |
| Seating Capacity | 6 + Wheelchair |
| Overall Dimention (L*W*H) | 4560×1200×1850 mm |
| Turning Radius | 6.0 m |
| Ground Clearance | 200mm |
| WheelBase | 3485 mm |
| Payload Capacity | 950 kg |
| Front Suspension | Leaf spring with hydraulic shocks |
| Rear Suspension | Leaf spring with shock dampers |
| Drive Motor | 10 K.W |
| Motor Type | AC Induction Motor |
| Frame/Chassis | Power coated, tubular steel chassis |
| Batteries | 8* 6 V- 225 Ah (lead acid) or 48 V 150 Ah (li-ion ) |
| Tyres | 165/60-R12 |
| Maximun Speed | 25 Km/h |
| Maximum Travel Distance | 60-80 kms |
| Grade Ability | Max 10-15 degrees |
Contact our team for pricing, customisation options, and delivery timelines. Presence across India, USA & Maldives.
